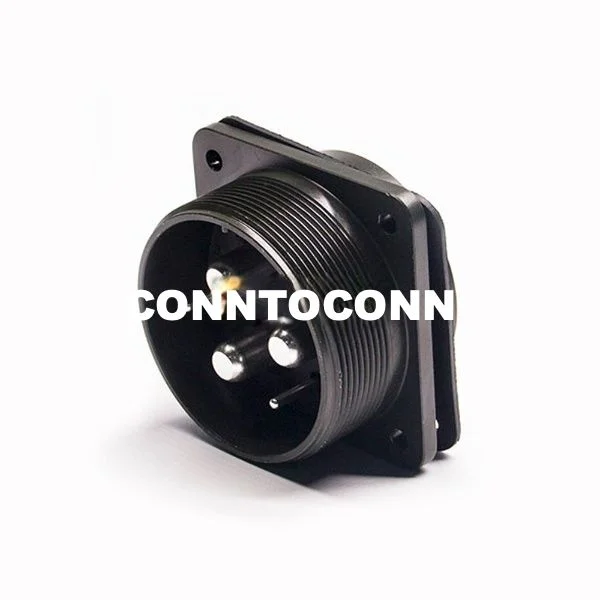

MS5015 36-3 Circular MIL Spec Connector

MS5015 36-3 Circular MIL Spec Connector

MIL-DTL-5015 ：
MS3450，MS3451，MS3452， MS3454，MS3456，MS3459，MS3400, MS3401, MS3402, MS3404，MS3406，MS3408，MS3442，MS3449，MS3100, MS3101, MS3102，MS3106，MS3108，MS3406DJ，MS3112，MS3440，MS3470，MS3471，MS3472，MS3474，MS3475，MS3476
Aero Electric：AE556，AE550，AE551，AE552，AE554，AE559
Amphenol/Matrix：
9446，9440，9441，9442，9444，97-3106，97-3100，97-3101，97-3102
ITT Cannon：
CV3456，CV3450，CV3451，CV3452，CV3454，CA3106，CA3100，CA3101，CA3102

Basic Attributes

Shell Size36
Number of Positions1-64Pin
Connection TypeCable Plug, Panel Mount Receptacles
OrientationRight Angle, Straight
Contact TypeFemale Pin, Male Pin
Contact TerminationSolder Cup
KeyN
Shell MaterialAluminum Alloy
Shell FinishOlive Drab Cadmium
Insulation MaterialSynthetic Rubber
Contact MaterialCopper Alloy

Performance

Fastening TypeThreaded, Bayonet
Rated Current120A, 30A
Rated Voltage500V
Insulation Resistance5,000 Mega ohms minimum (at 25°C)
Mechanical Operation>500 Mating Cycles
Wire Gauge14-12AWG, 2-0AWG
Operating Temperature-55°C ~ + 125°C
Ingress ProtectionIP67
