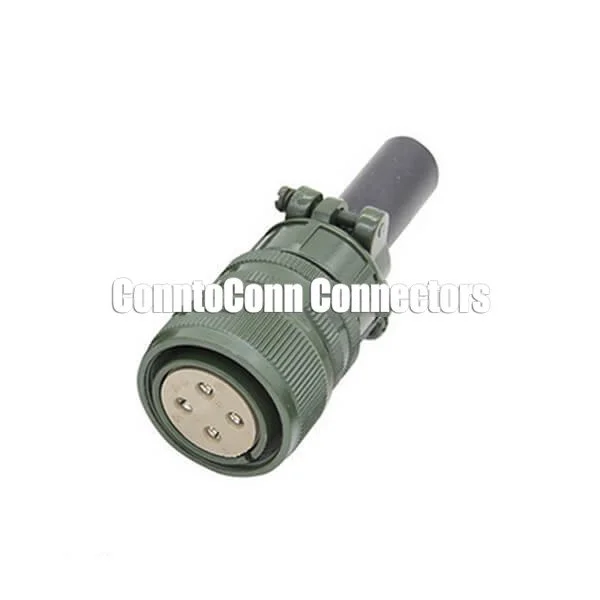

STRAIGHT MS 5015 CONECTOR STRAIGHT PLUG 4 PINS SOCKET

Features:
  • Made according to the MS-C-5015 Standard for industrial application.
  • Thread coupling and bayonet coupling connect technique for high stability and easy connection.
  • Reliable performance with highpower carrying capacity, inherent ruggedness and capacity to withstand extreme harsh environment.
  • Competitive price from factory with Small MOQ to help you reduce inventories and avoid market risks;
  • Accept OEM & ODM for your customized requirement;
Specifications
Insulation Resistance≧5000MΩ
Normal Temperature 25°C
Ambient Temperature-55°C – 125°C
Relative humidity95+ -4% at 40°C
Frequency10~2000 Hz147 m/s²
Shock490 m/s²
Withstanding voltage2000V
Service Life/Durability≧500 Insertation and Extraction
Dielectric Strength2KV
Working VoltageAC 500VDC 700V
